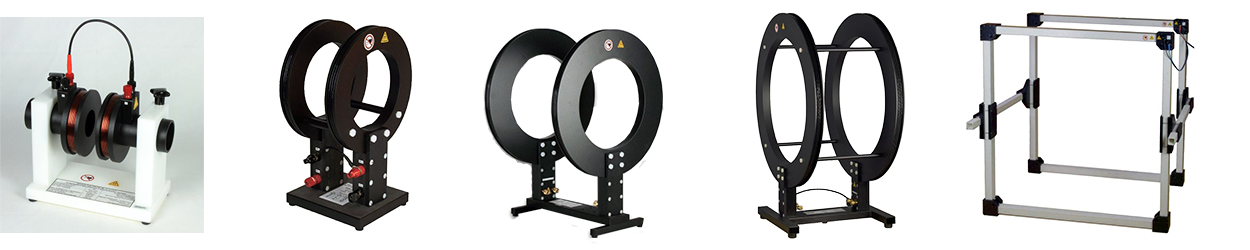

亥姆霍兹线圈专门设计用于产生从直流到音频范围上限及更高范围的精确定义的磁场。 产生的磁场与线圈电流呈强线性关系。 根据线圈的几何形状、匝数和线圈电流，可以通过解析（或数值）方法精确计算场强。因此亥姆霍兹线圈非常适合校准磁场探头或传感器。 典型应用是根据汽车标准或 MIL-461F 进行的磁抗扰度测试。当使用亥姆霍兹线圈产生磁场时，线圈电流与磁场强度成正比。
| 型号 |
电流 |
场强强度 |
| HHS 5201-6 |
40 A (1 min.)
|
2860 A/m (1 min.)
|
|
15A(15min.)
|
860 A/m continuous
|
|
12 A continuous
|
|
| HHS 5201-98 |
40 A (1 min.)
|
64 kA/m (1 min.)
|
|
15A(15min.)
|
20 kA/m continuous
|
|
12 A continuous
|
|
| HHS 5202-9 |
55 A (5 min.)
|
3053 A/m (5 min.)
|
|
33 A continuous
|
1832 A/m continuous
|
| HHS 5202-81 |
6A(5 min.)
|
3000 A/m (5 min.)
|
|
5 A continuous
|
2000 A/m continuous
|
| HHS 5204-12 |
60 A (5 min.)
|
2500 A/m (5 min.)
|
|
30 A continuous
|
1288 A/m continuous
|
| HHS 5204-36 |
20 A (5 min.)
|
2500 A/m (5 min.)
|
|
10 A continuous
|
1288 A/m continuous
|
| HHS 5206-8 |
55 A (5 min.)
|
1060 A/m (5 min.)
|
|
34 A continuous
|
650 A/m continuous
|
| HHS 5206-16 |
55 A (5 min.)
|
2100 A/m (5 min.)
|
|
33 A continuous
|
1260 A/m continuous
|
| HHS 5206-132 |
15 A (5 min.)
|
4713 A/m (5 min.)
|
|
10 A continuous
|
3142 A/m continuous
|
| HHS 5210-10 |
20 A (5 min.)
|
300 A/m (5 min.)
|
|
10 A continuous
|
150 A/m continuous
|
| HHS 5210-100 |
15 A (5 min.)
|
2183 A/m (5 min.)
|
|
9 A continuous
|
1310 A/m continuous
|
| HHS 5210-100 2.5 |
20 A (5 min.) 15 A continuous
|
2900 A/m (5 min.) 1746 A/m continuous
|
| HHS 5212-10 |
20 A (5 min.) 10 A continuous
|
250 A/m (5 min.) 125 A/m continuous
|
| HHS 5213-50 |
8A(5 min.) 5 A continuous
|
390 A/m (5 min.) 240 A/m continues
|
| HHS 5213-100 |
15 A (5 min.) 9 A continuous
|
900.9 A/m continuos
|
| HHS 5215-10 |
20 A (5 min.) 10 A continuous
|
200 A/m (5 min.) 100 A/m continuos
|
| HHS 5215-100 |
20 A (5 min.) 10 A continuous
|
2000 A/m (max. 5 min.T dist. 0.84 m*) 842 A/m continuos
|
| HHS 5218 |
20 A (5 min.) 10 A continuous
|
126 A/m (5 min.) 63 A/m continuos
|
| HHS 5230-100 |
16 A (5 min.) 8 A continuous
|
650 A/m @ coil Dist. =1.8 m 325 A/m @ coil Dist. = 1.8 m
|
