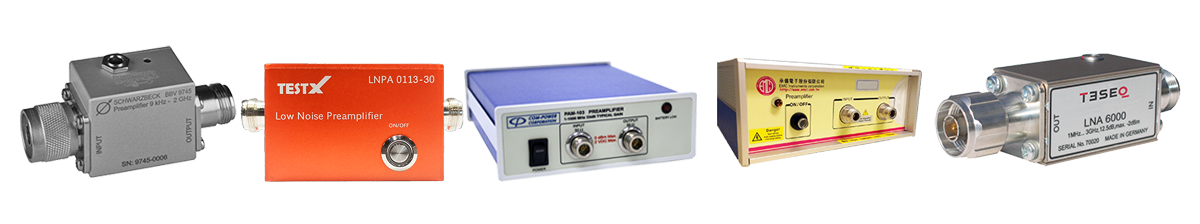

前置放大器
    宽带、高增益的前置放大器通常用于EMC(电磁兼容)测试应用,旨在提高EMC一致性测试期间的测量系统灵敏度。高增益属性,可放大隐藏在测量设备本底噪声之下的小幅值信号,以便可以看到并测量。ATS众测可为用户提供9kHz~40GHz频率范围内的前置放大器产品,根据用户的需求进行硬件的选型和搭配,从而集成最佳性能的EMI测试系统。


TestX
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
LNPA 0113-30 10MHz - 1.3GHz 34 1.5 <±1 <1.5 +10dBm Nf-Nf Adaptor
LNPA 0160-40 10MHz-6GHz 37 2.0 <±1 <1.5 +23dBm Nf-Nf Adaptor
LNPA 118A 500MHz-18GHz 40 2.0 <±1 <1.2 +10dBm SMAf-SMAf Adaptor
Schwarzbeck
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
BBV 9745 9kHz~2GHz 30 2.5 <±3 <2:1 > -20 dBm Nm-Nf Adaptor
BBV 9744 9kHz~6GHz 28 2.5 <±3 <2:1 > -20 dBm Nm-Nf Adaptor
BBV 9743 B 10MHz~6GHz Typ. +28 Typ. <2.7 <±3 <2:1 > -18 dBm Nm-Nf Adaptor
BBV 9718 D 1GHz~18GHz Typ. +30±5 2 <±5 <2:1 > -10 dBm SMAf-Nf Battery or Adaptor
BBV 9719 18~26.5GHz Typ. +33 3.5 <±2 <2:1 > -20 dBm SMAf-SMAf Battery or Adaptor
BBV 9721 18~40GHz Typ. +35 5.5 <±4 <2.6:1 > -20 dBm 2.92f-2.92f Battery or Adaptor
COM-POWER
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
PAL-010 100Hz~300MHz >28 <1.9 <±2.5     BNCf-BNCf Battery or Adaptor
PAM-103 1MHz~1GHz 33 <3.3 <±3.0 1.25:1 +18.3 dBm(output) Nf-Nf Battery or Adaptor
PAM-6000 1GHz~6GHz 30 1.5 <±1.5 2.5:1 +13 dBm(output) Nf-Nf Battery or Adaptor
PAM-118A 0.5~18GHz Typ.40 <3.0 <±2.5 2.2:1 +12 dBm(output) Nf-Nf Battery or Adaptor
PAM-840A 18~40GHz 37 <5.0 <±2.5 2.25:1 +10 dBm(output) 2.92f-2.92f Battery or Adaptor
PAP-501 10MHz~1GHz >21 3.5 <±2.0   +10 dBm(output) BNCf-BNCf Adaptor
EMCI
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
EMC9135 9kHz~1GHz 35 Typ. 1.8 <±2.0 2.0:1 +13 dBm(output) Nf-Nf Mains 110/230V
EMC9145 9kHz~1GHz 45 Typ. 1.8 <±2.0 2.0:1 +13 dBm(output) Nf-Nf Mains 110/230V
EMC1150 10kHz~1GHz >50 Typ. 1.8 <±2.0 2.0:1 +13 dBm(output) Nf-Nf Mains 110/230V
EMC001330 10kHz~3GHz 30 Max. 6.0 <±1.5 1.4:1 +14 dBm(output) Nf-Nf Mains 110/230V
EMC001340 10kHz~3GHz 40 Max. 6.0 <±1.5 1.4:1 +14 dBm(output) Nf-Nf Mains 110/230V
EMC01640A 10MHz~6GHz >40 Max. 2.5 <±2.5 1.8:1 +15 dBm(output) Nf-SMAf Mains 110/230V
EMC1640 1GHz~6GHz >40 Max. 2.5 <±3.0 3.0:1 +10 dBm(output) Nf-SMAf Mains 110/230V
EMC1640D 1GHz~6GHz >40 Max. 3.0 <±2.5 2.5:1 +15 dBm(output) Nf-SMAf Mains 110/230V
EMC1640P 1GHz~6GHz >40 Max. 2.5 <±3.0 3.0:1 +10 dBm(output) Nf-SMAf Mains 110/230V
EMC001835 10MHz~8GHz 35 Max. 2.7 <±1.8 2.3:1 +10 dBm(output) 2.92f-2.92f Mains 110/230V
EMC0031835B 30MHz~18GHz 35 Max. 2.7 <±2.5 2.5:1 +10 dBm(output) SMAf-SMAf Mains 110/230V
EMC051845B 500MHz~18GHz 45 Max. 2.5 <±4.0 2.3:1 +10 dBm(output) SMAf-SMAf Mains 110/230V
EMC118A45 1GHz~18GHz 34 @1G 3.5~8 <±3.0(1~6G) 1.8:1 -15dBm@1G max ~ -25dBm@18G max(input) SMAf-SMAf Mains 110/230V
48 @18G <±3.0(6~12G)
  <±3.0(12~18G)
EMC051845B 500MHz~18GHz >45 Max. 2.5 <±4.0 2.3:1 +10 dBm(output) SMAf-SMAf Mains 110/230V
EMC051845SE 500MHz~18GHz >45 Max. 3.0 <±4.0 2.3:1 +10 dBm(output) SMAf-SMAf Mains 110/230V
EMC12630B 1GHz~26.5GHz 30 Max. 4.0 <±2.0 2.5:1 +13 dBm(output) SMAf-SMAf Mains 110/230V
EMC12630SE 1GHz~26.5GHz 30 Max. 4.0 <±2.0 2.5:1 +13 dBm(output) SMAf-SMAf Mains 110/230V
EMC012645B 0.1GHz~26.5GHz >45 Max. 4.5 <±4.0 2.5:1 +10 dBm(output) 2.92f-2.92f Mains 110/230V
EMC012645SE 0.1GHz~26.5GHz >45 Max. 4.5 <±4.0 2.5:1 +10 dBm(output) 2.92f-2.92f Mains 110/230V
EMC184045B 18GHz~40GHz >45 Max. 3.0 <±4.5 2.5:1 +8 dBm(output) 2.92f-2.92f Mains 110/230V
EMC184045SE 18GHz~40GHz >45 Max. 3.0 <±4.5 2.5:1 +8 dBm(output) 2.92f-2.92f Mains 110/230V
与EMC12630B相比,有较小的尺寸
与EMC012645B相比,有较小的尺寸
与EMC184045B相比,有较小的尺寸
TESEQ
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
LNA6901 9kHz~1GHz Typ.28 Typ.2.8 <±1.0 <1.5 +8 dBm(output) Nf-Nm Adaptor
9kHz~1GHz*
LNA6900 9kHz~2GHz Typ.25 Typ.4.0 <+0.5/-3 <1.5 +12.5 dBm(output) Nf-Nm Adaptor
9kHz~4GHz*
LNA6000 1MHz~3GHz Typ.12.5 Typ.4.0 ±0.3(1M~1G) <1.5 +12.5 dBm(output) Nf-Nm Adaptor
200kHz~4GHz* +0.3/-2.5(200k~3G)
*意为可使用到的频率范围
SONOMA
MODEL FREQUENCY GAIN
(dB)
Noise Figure
(DB)
Flatness
(DB)
VSWR 1 dB compression point at input Connector Supply
(INPUT/OUTPUT)
310 9kHz~1.0GHz 32 Typ. 1.8 <±0.5   +10 dBm(output) Nf-Nf Mains 100~240V
315 10kHz~1.0GHz 51 Typ. 1.8 <±0.5   +15 dBm(output) Nf-Nf Mains 100~240V
321 9kHz~2.0GHz 28.5 Typ. 6.5 <±1.0   +20 dBm(output) Nf-Nf Mains 100~240V
330 10kHz~2.5GHz 20 Typ. 7.3 <±0.75   +9.7 dBm(output) Nf-Nf Mains 100~240V
317 10kHz~2.5GHz 38 Typ. 4.8 <±0.75   +15 dBm(output) Nf-Nf Mains 100~240V
354 10kHz~3.0GHz 19 Typ. 4.8 <±0.5   +15 dBm(output) Nf-Nf Mains 100~240V
352 10kHz~5.0GHz 26 Typ. 6.0 <±0.6   +10 dBm(output) Nf-Nf Mains 100~240V
